>>Products Current Position:Home>>Products>>Filling Machine

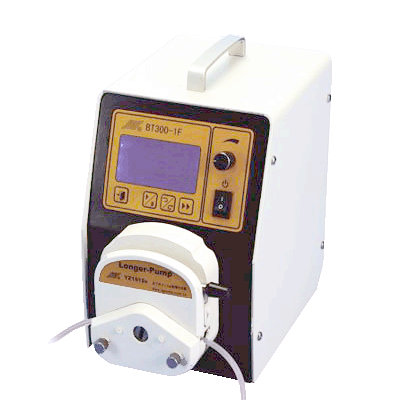

Peristaltic pump-style semi-automatic liquid filling machine

Name Model: peristaltic pump-style semi-automatic liquid filling machine-BT300-1F

The main purpose
  . Irrigation can be filling the vast majority types of liquids, including the high viscosity of the liquid. Such as: all kinds of pharmaceutical, chemicals, oils, cosmetics, food and other non-granular liquid; filling high accuracy, suitable for laboratory use.

Technical parameters
  . Speed range: 1 ~ 300 rpm, positive and irreversible
  . Speed: rotary encoders for conditioning
  . Show: 128 * 64-graphic dot-matrix liquid crystal display can be displayed in the flow and speed display switch between two ways
  . Allocation of frequency: 1 to 999
  . Distribution of liquid: 0.1 ml ~ 99.9L
  . Intervals: 1 to 999 seconds
  . Back to suction point: 0 ~ 360 ° (18 ° Step)
  . Communication Interface: RS485
  . External control interface: Commitment control, direction control, speed control   (0 ~ 5V, 0 ~ 10V, 4 ~ 20mA, 0 ~ 10KHz optional)
  . Applicable power: AC 220V ± 10%, 50Hz/60Hz (standard)  AC 110V ± 10%, 50Hz/60Hz (optional)
  . Power consumption: <50 W
  . The working environment: Temperature 0 ~ 40 ℃, relative humidity <80%
  . Protection levels: IP31
  . Speed resolution: 1 rpm
  . Drive Size: (L × W × H) 202 × 160 × 239 (mm)
  . Driver weight: 4.3 kg

Principles and characteristics of
  1、install three Pump Head: YZ1515x, YZ2515x, YZ1515w
  2、you can set up the distribution of time intervals, for automatic distribution of filling
  3、 shows traffic or speed
  4、 to set the flow correction, to obtain the most accurate flow
  5、with communication interfaces, can provide users with communication agreement, users can also be customized PC software requirements
